항공관제용 & 산업용 > IDP4300UH

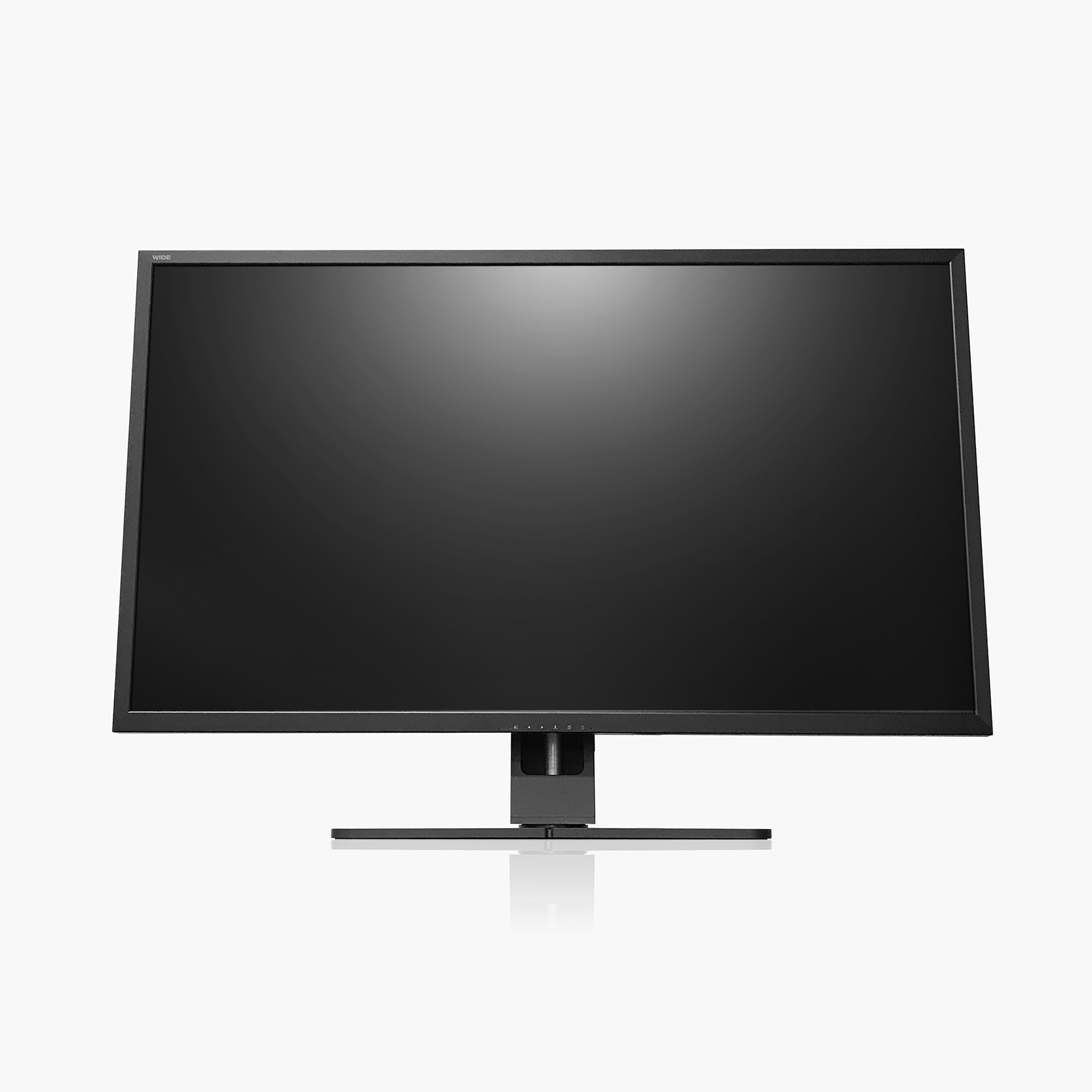

IDP4300UH

4K2K

항공관제용 컬러 모니터

  • 3840 x 2160 해상도
  • LED 백라이트 시스템
  • 500cd/m² 고휘도
  • SNMP 지원
  • 사양
  • 그래픽 카드
제품명 IDP4300UH
LCD 패널 사양 TFT AMLCD Color
기본 해상도 3840(H) x 2160(V)
화소 간격 0.2451mm x 0.2451mm
활성 영역 크기 941.2mm x 529.4mm (37.0"x20.8")
활성 화면 크기 (대각선) 1079.8mm(43")
시야각 (일반) 89˚/ 89˚/ 89˚/ 89˚ (U/D/L/R)
최대 휘도 (일반) 500 cd/m²
조정 휘도 (일반) -
명암비 (일반) 4,000:1
색정의표 정보 전송률 -
디지털 비디오 입력 2 x DP 1.2a , 2 x HDMI 2.0
디스플레이 통신 DDC2B (VESA compliance)
USB N/A
전원 공급 장치 AC Input: 100-250V±10%, 50Hz-60Hz
내장 센서 SBC
균일 휘도 제어 N/A
디스플레이 조정 Source, Left, Right, Enter, Menu, Power
OSD 언어 English
LED 작업등 (PrivateLite®) N/A
전력 소비 Max: 120W, Typ: 80W
무게 16.6 kg (without stand)
23.6 kg (with stand)
치수 982.3mm(W) x 575.6mm(H) x 52.3mm(D) (without stand)
982.3mm(W) x 693.1mm(H) x 290.6mm(D) (with stand)
작동 온도 0˚C ~ 50˚C (32˚F~122˚F)
작동 습도 10% ~ 85%
보관 온도 -20˚C ~ 60˚C (-4˚F~140˚F)
인증 및 표준 FCC Part 15, Class B, EN55022/EN61000-3-2/EN61000-3-3/EN55024, KC/VCCI-CISPR 32, CE&CB EN60950-1/IEC60950-1, UL60950-1
옵션 Remote Controller, Mechanical versions(contact us)
모델명 지원되는 OS 시스템 프레임 버퍼 메모리 BUS 인터페이스 최대 해상도 출력

RadeonPro WX3100

Windows 7-64-bit , Windows 10-64-bit 4GB PCI Express 3.0 5120 x 2880 DisplayPort x 1 , Mini DisplayPort x 2

Quadro P4000

Windows 7 , Windows 8.1 , Windows 10 8GB PCI Express 3.0 4096 x 2160 DisplayPort x 4

Quadro P2000

Windows 7 , Windows 8.1 , Windows 10 5GB PCI Express 3.0 5120 x 2880 DisplayPort x 4

Quadro P1000

Windows 7 , Windows 8.1 , Windows 10 4GB PCI Express 3.0 4096 x 2160 Mini DisplayPort x 4

RadeonPro WX7100

Windows 7-64-bit , Windows 10-64-bit 8GB PCI Express 3.0 5120 x 2880 DisplayPort x 4

Radeon RX580

Windows 7-64-bit , Windows 10-64-bit 8GB PCI Express 3.0 3840 x 2160 DVI x 1 , HDMI x 1 , DisplayPort x 3

RadeonPro WX5100

Windows 7-64-bit , Windows 10-64-bit 8GB PCI Express 3.0 5120 x 2880 DisplayPort x 4

Radeon RX vega56

Windows 7-64-bit , Windows 8.1-64-bit , Windows 10-64-bit 8GB PCI Express 3.0 7680 x 4320 HDMI x 3 , DisplayPort x 3

GeForce GTX1660Ti

Windows 7 , Windows 8.1 , Windows 10 6GB PCI Express 3.0 7680 x 4320 HDMI x 1 , DisplayPort x 3

GeForce RTX2080Ti

Windows 7 , Windows 8.1 , Windows 10 11GB PCI Express 3.0 7680 x 4320 USB Type-C x 1 , HDMI x 1 , DisplayPort x 3

Quadro RTX4000

Windows 7 , Windows 8.1 , Windows 10 8GB PCI Express 3.0 7680 x 4320 USB Type-C x 1 , HDMI x 1 , DisplayPort x 3

Radeon RX5700XT

Windows 7-64-bit , Windows 10-64-bit 8GB PCI Express 4.0 7680 x 4320 HDMI x 1 , DisplayPort x 3

RadeonPro WX3100

OS System Supported Windows 7-64-bit , Windows 10-64-bit
Frame Buffer Memory 4GB
Bus Interface PCI Express 3.0
Max Resolution 5120 x 2880
Output DisplayPort x 1 , Mini DisplayPort x 2

Quadro P4000

OS System Supported Windows 7 , Windows 8.1 , Windows 10
Frame Buffer Memory 8GB
Bus Interface PCI Express 3.0
Max Resolution 4096 x 2160
Output DisplayPort x 4

Quadro P2000

OS System Supported Windows 7 , Windows 8.1 , Windows 10
Frame Buffer Memory 5GB
Bus Interface PCI Express 3.0
Max Resolution 5120 x 2880
Output DisplayPort x 4

Quadro P1000

OS System Supported Windows 7 , Windows 8.1 , Windows 10
Frame Buffer Memory 4GB
Bus Interface PCI Express 3.0
Max Resolution 4096 x 2160
Output Mini DisplayPort x 4

RadeonPro WX7100

OS System Supported Windows 7-64-bit , Windows 10-64-bit
Frame Buffer Memory 8GB
Bus Interface PCI Express 3.0
Max Resolution 5120 x 2880
Output DisplayPort x 4

Radeon RX580

OS System Supported Windows 7-64-bit , Windows 10-64-bit
Frame Buffer Memory 8GB
Bus Interface PCI Express 3.0
Max Resolution 3840 x 2160
Output DVI x 1 , HDMI x 1 , DisplayPort x 3

RadeonPro WX5100

OS System Supported Windows 7-64-bit , Windows 10-64-bit
Frame Buffer Memory 8GB
Bus Interface PCI Express 3.0
Max Resolution 5120 x 2880
Output DisplayPort x 4

Radeon RX vega56

OS System Supported Windows 7-64-bit , Windows 8.1-64-bit , Windows 10-64-bit
Frame Buffer Memory 8GB
Bus Interface PCI Express 3.0
Max Resolution 7680 x 4320
Output HDMI x 3 , DisplayPort x 3

GeForce GTX1660Ti

OS System Supported Windows 7 , Windows 8.1 , Windows 10
Frame Buffer Memory 6GB
Bus Interface PCI Express 3.0
Max Resolution 7680 x 4320
Output HDMI x 1 , DisplayPort x 3

GeForce RTX2080Ti

OS System Supported Windows 7 , Windows 8.1 , Windows 10
Frame Buffer Memory 11GB
Bus Interface PCI Express 3.0
Max Resolution 7680 x 4320
Output USB Type-C x 1 , HDMI x 1 , DisplayPort x 3

Quadro RTX4000

OS System Supported Windows 7 , Windows 8.1 , Windows 10
Frame Buffer Memory 8GB
Bus Interface PCI Express 3.0
Max Resolution 7680 x 4320
Output USB Type-C x 1 , HDMI x 1 , DisplayPort x 3

Radeon RX5700XT

OS System Supported Windows 7-64-bit , Windows 10-64-bit
Frame Buffer Memory 8GB
Bus Interface PCI Express 4.0
Max Resolution 7680 x 4320
Output HDMI x 1 , DisplayPort x 3
