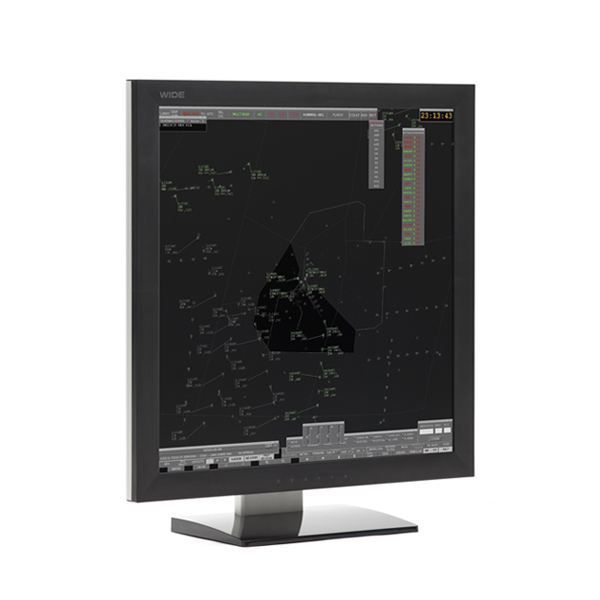

IDP2810SQ

2K2K

Air Traffic Control Color Display

  • 2K2K Color Display Monitor
  • High Brightness 500cd/m²
  • Low Power Consumption
  • Dual Power Supply(Optional)
  • Fan-less & Eco-friendly
  • Specifications
  • Graphics Cards
Model IDP2810SQ
LCD Panel TFT AMLCD IPS Color
Native Resolution 2,048(H) x 2,048(V)
Pixel Pitch 0.246mm x 0.246mm
Active Display Area 503.8mm x 503.8mm (20.2"x20.2")
Active Screen Size (Diagonal) 28.05” (712.4mm)
Viewing Angle (Typ) 89˚/ 89˚/ 89˚/ 89˚ (U/D/L/R)
Brightness Max. (Typ) 500 cd/m² (on LCD)
Brightness Calibrated (Typ) 400 cd/m²
Contrast Ratio (Typ) 1,000:1
Vit Rate for Look-Up Table -
Digital Video Input 2x DVI-I 29 pin (dual-link), 2x DisplayPort, 1x Analog (5-BNC, optional)
Display Communication DDC2B (VESA compliance)
Universal Serial Bus (USB) N/A
Power Supply AC Input: 85~264V±10%, 47~63Hz / 12V DC, 12.54A
Built-in Sensors SBC
Luminance Uniformity Control (LUC) N/A
Display Adjusstments Source, Left, Right, Enter, Menu, Power
OSD Languages English
LED Lignt (PrivateLite®) N/A
Power Consumpiton 30W(at 70cd/m² typical ATC environment)
Mountiong Hole VESA Standard (100mmx100mm)
Weight 11.5kg(CH/VM)
15.0kg(DT)
Dimension 579.8mm(H)x579.3mm(W)x67.9mm(D) (CH/VM)
644.1mm(H)x579.3mm(W)x206.5mm(D) (DT)
Operational Temperature 0˚C ~ 40˚C (32˚F~104˚F)
Operational Humidity 0% - 85%
Storage Temperature -20˚C ~ 60˚C (-4˚F~140˚F)
Certifications and Standards KC(KN22, KN61000-4-2, KN61000-4-3, KN61000-4-4, KN61000-4-5, KN61000-4-6, KN61000-4-11), VCCI (VCCI V-3), FCC (FCC Part15 Class B), CE (EN61000-3-2, EN61000-3-3, EN55022, EN55024), CCC (GB9254, GB4943, GB17625), UL (E216999), CE(EN60950-1), CB (IEC60950-1, EN60950-1)
Options Remote Controller
Model Name OS System Supported Frame Buffer Memory Bus Interface Max Resolution Output

GeForce GTX1080

Windows 7 , Windows 8.1 , Windows 10 8GB PCI Express 3.0 7680 x 4320 DVI x 1 , HDMI x 1 , DisplayPort x 3

Radeon RX580

Windows 7-64-bit , Windows 10-64-bit 8GB PCI Express 3.0 3840 x 2160 DVI x 1 , HDMI x 1 , DisplayPort x 3

Radeon RX470

Windows 7-64-bit , Windows 8.1-64-bit , Windows 10-64-bit 4GB PCI Express 3.0 3840 x 2160 DVI x 2 , HDMI x 1 , DisplayPort x 1

GeForce GTX1060

Windows 7 , Windows 8.1 , Windows 10 6GB PCI Express 3.0 7680 x 4320 DVI x 1 , HDMI x 1 , DisplayPort x 3

GeForce GTX1080

OS System Supported Windows 7 , Windows 8.1 , Windows 10
Frame Buffer Memory 8GB
Bus Interface PCI Express 3.0
Max Resolution 7680 x 4320
Output DVI x 1 , HDMI x 1 , DisplayPort x 3

Radeon RX580

OS System Supported Windows 7-64-bit , Windows 10-64-bit
Frame Buffer Memory 8GB
Bus Interface PCI Express 3.0
Max Resolution 3840 x 2160
Output DVI x 1 , HDMI x 1 , DisplayPort x 3

Radeon RX470

OS System Supported Windows 7-64-bit , Windows 8.1-64-bit , Windows 10-64-bit
Frame Buffer Memory 4GB
Bus Interface PCI Express 3.0
Max Resolution 3840 x 2160
Output DVI x 2 , HDMI x 1 , DisplayPort x 1

GeForce GTX1060

OS System Supported Windows 7 , Windows 8.1 , Windows 10
Frame Buffer Memory 6GB
Bus Interface PCI Express 3.0
Max Resolution 7680 x 4320
Output DVI x 1 , HDMI x 1 , DisplayPort x 3
