| Model |

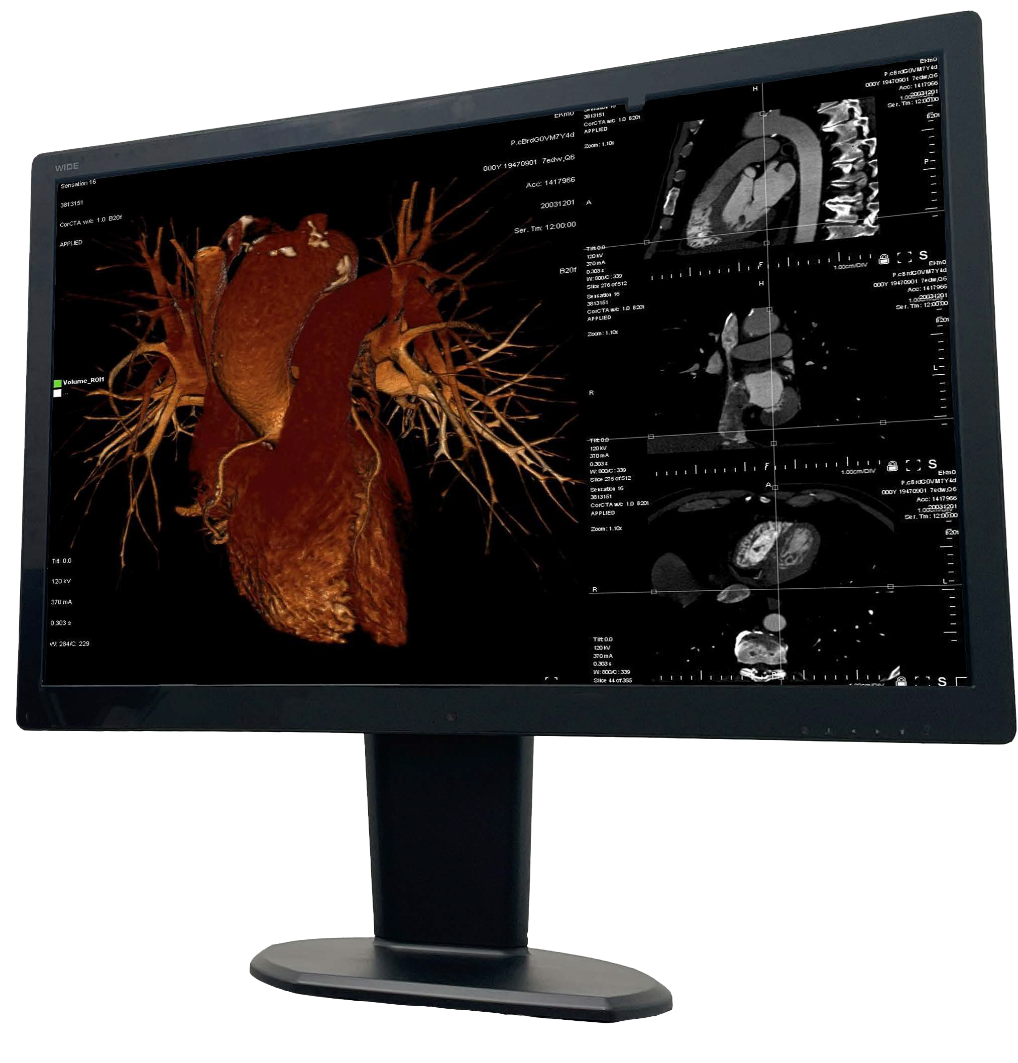

CW80N |
| Panel |
TFT LCD IPS Color |
| Native Resolution |
3840(H) x 2160(V) |
| Pixel Pitch |
0.1859 mm X 0.1859 mm |
| Active Display Area |
697.3056 (H)mm X 392.2344 (V)mm |
| Active Screen Size |
800.051mm (31.5") |
| Viewing Angle(Typ) |
89°/ 89°/ 89°/ 89° (up/down/right/left) |
| Brightness Max.(Typ) |
1000 cd/m2 |
| Brightness Calibrated(Typ) |
500 cd/m2 |
| Contrast Ratio(Typ) |
2000:1 |
| Bit Rate for Look-Up Table |
14-bit |
| Digital Video Input |
DisplayPort 1.4 x 2, HDMI x 1 |
| Display Communication |
DDC2B (VESA Standard Compliance) |
| USB |
Upstream port x 1, Downstream port x 2 (each 900mA) |
| Power Supply |
AC Input 100~240 VAC, 50-60Hz, 1.5-0.7A / DC Output 24VDC, 5.0A |
| Adjustment ability |
Height 0~110mm, Tilt -3°(D) / 15°(U), Swivel -20°(L) / 20°(R) |
| Bulit-in Sensors |
IQ Sensor, SBC, Human detector |
| LUC3 |
Yes |
| Display Adjustments |
Menu, Enter, Down, Up, Lamp, Power |
| OSD Language |
English |
| LED Light (Ambient Light) |
Yes |
| LED Light (Private Light) |
Yes |
| Power Consumption |
Max 110W, Typical 75W, DPMS 10W |
| Portrait/Landscape Rotation |
- |
| Mounting Hole |
VESA Standard (100mmx100mm) |
| Weight |
17.4Kg / 38.36lb with stand |
| Dimension |
745.2(W) x 617.7(H) x 283.0(D)(±2) |
| Operational Temperature |
0°C to 40°C / 32°F to 104°F |
| Operational Humidity |
8% to 80% |
| Storage Temperature |
–20°C to 60°C / –4°F to 140°F |
| Certifications and Standards |
ANSI/AAMI ES 60601-1, EN60601-1, IEC60601-1, CE, KC, FCC |
