판독용 모니터

Pixel by pixel precision

판독용 > CX30N

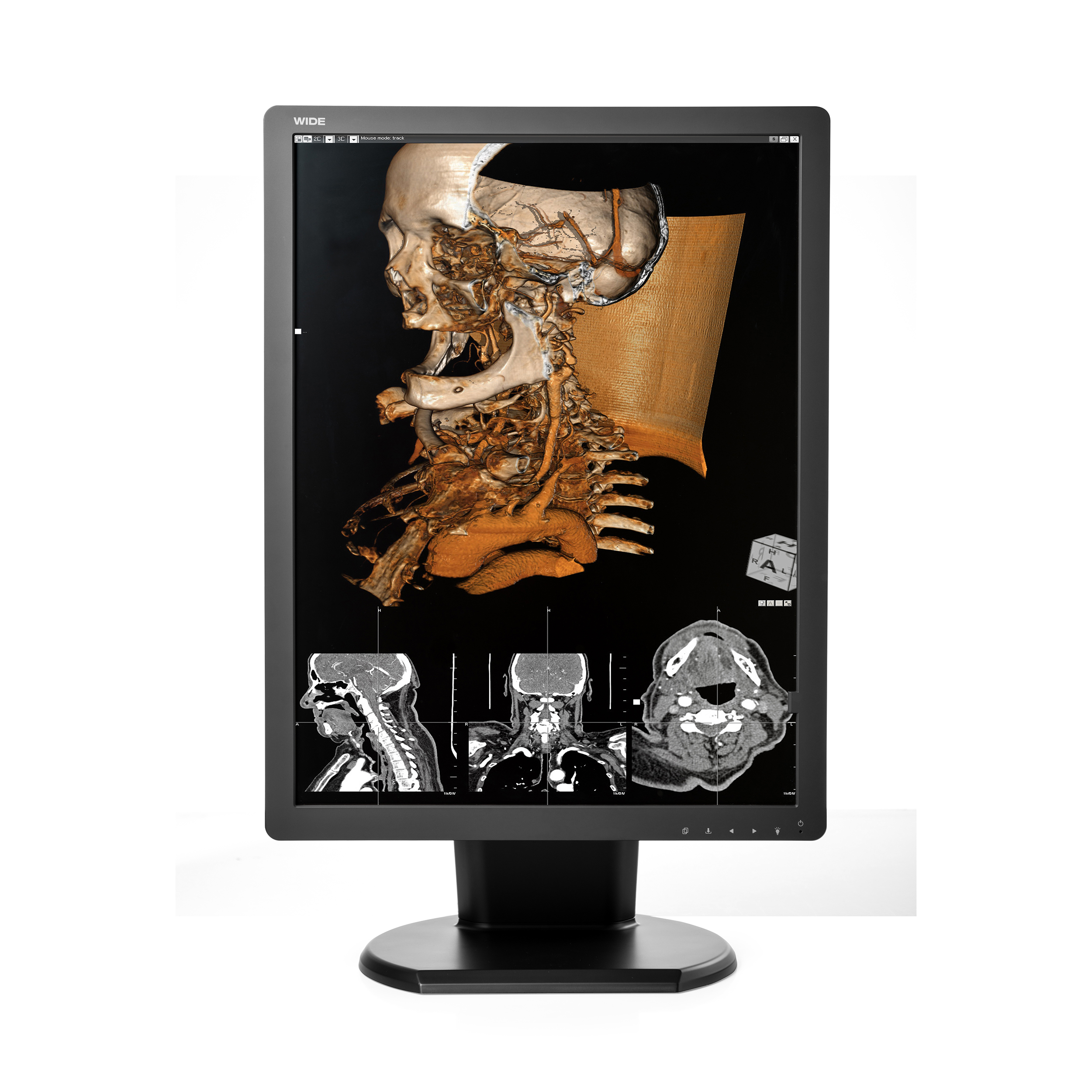

CX30N

3M

판독용 컬러 모니터

  • 14-bit 색정의표(Look-up Table)
  • 내장 IQ 센서 ®
  • LED 작업등 (PrivateLite®)
  • DisplayPort & DVI
  • 사양
  • 그래픽 카드
제품명 CX30N
LCD 패널 사양 TFT AMLCD IPS Color
기본 해상도 1536(H) x 2048(V)
화소 간격 0.2115mm X 0.2115mm
활성 영역 크기 433.15(H)mm x 324.86(V)mm (17.0”X12.9”)
활성 화면 크기 (대각선) 541.436mm (21.3 ")
시야각 (일반) 178º,178º at 10:1 Contrast Ratio
최대 휘도 (일반) 1000cd/m²
조정 휘도 (일반) 450cd/m²
명암비 (일반) 1500:1
색정의표 정보 전송률 14-bit
디지털 비디오 입력 DVI-I, DisplayPort
디스플레이 통신 DDC2B (VESA Standard Compliance)
USB 1 up and 3 down-streams
전원 공급 장치 AC Input: 100-240Volt±10% / 60Hz/50Hz±3Hz | DC Output: +24V
내장 센서 IQ Sensor III®, SBC, DAC
균일 휘도 제어 Yes
디스플레이 조정 Menu, Enter, Down, Up, Lamp, Power
OSD 언어 English, German, French, Spanish, Italian, Russian, Japanese, Chinese, Korean
LED 작업등 (PrivateLite®) Yes
전력 소비 Max: 75W, Power Save: 2W
기울이기 / 회전 / 높이 조정 범위 -3º,+15º/±20º/110mm
세로 / 가로 회전각 90º (Counter clockwise)
마운팅홀 VESA Standard (100mmx100mm)
무게 10.1Kg(22.27lb)with Stand
치수 366.0mm(W)x518.8mm(H)x248.8mm(D)
작동 온도 0ºC to 40ºC (32ºF to 104ºF)
작동 습도 8% to 80%
보관 온도 -20ºC to 60ºC (-4ºF to 140ºF)
인증 및 표준 ANSI/AAMI ES 60601-1, EN60601-1, IEC60601-1, CE, VCCI, KC, C-Tick, FCC
옵션 Protective Glass
모델명 지원되는 OS 시스템 프레임 버퍼 메모리 BUS 인터페이스 최대 해상도 출력

RadeonPro WX3100

 		Windows 7-64-bit , Windows 10-64-bit 4GB PCI Express 3.0 5120 x 2880 DisplayPort x 1 , Mini DisplayPort x 2

Quadro P4000

 		Windows 7 , Windows 8.1 , Windows 10 8GB PCI Express 3.0 4096 x 2160 DisplayPort x 4

Quadro P2000

 		Windows 7 , Windows 8.1 , Windows 10 5GB PCI Express 3.0 5120 x 2880 DisplayPort x 4

Quadro T1000

 		Windows 7 , Windows 8.1 , Windows 10 4GB PCI Express 3.0 7680X4320 Mini DisplayPort x 4

RadeonPro WX7100

 		Windows 7-64-bit , Windows 10-64-bit 8GB PCI Express 3.0 5120 x 2880 DisplayPort x 4

Radeon RX580

 		Windows 7-64-bit , Windows 10-64-bit 8GB PCI Express 3.0 3840 x 2160 DVI x 1 , HDMI x 1 , DisplayPort x 3

RadeonPro WX5100

 		Windows 7-64-bit , Windows 10-64-bit 8GB PCI Express 3.0 5120 x 2880 DisplayPort x 4

Radeon RX6800

 		Windows 7 , Windows 10 8GB PCI Express 4.0 7680 x 4320 HDMI x 2 , DisplayPort x 2

GeForce GTX1660Ti

 		Windows 7 , Windows 8.1 , Windows 10 6GB PCI Express 3.0 7680 x 4320 HDMI x 1 , DisplayPort x 3

GeForce RTX3080

 		Windows 7 , Windows 10 10GB PCI Express 4.0 7680 x 4320 HDMI x 2 , DisplayPort x 3

Quadro RTX4000

 		Windows 7 , Windows 8.1 , Windows 10 8GB PCI Express 3.0 7680 x 4320 USB Type-C x 1 , HDMI x 1 , DisplayPort x 3

Radeon RX5700XT

 		Windows 7-64-bit , Windows 10-64-bit 8GB PCI Express 4.0 7680 x 4320 HDMI x 1 , DisplayPort x 3

Quadro P2200

 		Windows 7 , Windows 8.1 , Windows 10 5GB PCI Express 3.0 5120 x 2880 DisplayPort x 4

RadeonPro WX3100
OS System Supported Windows 7-64-bit , Windows 10-64-bit
Frame Buffer Memory 4GB
Bus Interface PCI Express 3.0
Max Resolution 5120 x 2880
Output DisplayPort x 1 , Mini DisplayPort x 2

Quadro P4000
OS System Supported Windows 7 , Windows 8.1 , Windows 10
Frame Buffer Memory 8GB
Bus Interface PCI Express 3.0
Max Resolution 4096 x 2160
Output DisplayPort x 4

Quadro P2000
OS System Supported Windows 7 , Windows 8.1 , Windows 10
Frame Buffer Memory 5GB
Bus Interface PCI Express 3.0
Max Resolution 5120 x 2880
Output DisplayPort x 4

Quadro T1000
OS System Supported Windows 7 , Windows 8.1 , Windows 10
Frame Buffer Memory 4GB
Bus Interface PCI Express 3.0
Max Resolution 7680X4320
Output Mini DisplayPort x 4

RadeonPro WX7100
OS System Supported Windows 7-64-bit , Windows 10-64-bit
Frame Buffer Memory 8GB
Bus Interface PCI Express 3.0
Max Resolution 5120 x 2880
Output DisplayPort x 4

Radeon RX580
OS System Supported Windows 7-64-bit , Windows 10-64-bit
Frame Buffer Memory 8GB
Bus Interface PCI Express 3.0
Max Resolution 3840 x 2160
Output DVI x 1 , HDMI x 1 , DisplayPort x 3

RadeonPro WX5100
OS System Supported Windows 7-64-bit , Windows 10-64-bit
Frame Buffer Memory 8GB
Bus Interface PCI Express 3.0
Max Resolution 5120 x 2880
Output DisplayPort x 4

Radeon RX6800
OS System Supported Windows 7 , Windows 10
Frame Buffer Memory 8GB
Bus Interface PCI Express 4.0
Max Resolution 7680 x 4320
Output HDMI x 2 , DisplayPort x 2

GeForce GTX1660Ti
OS System Supported Windows 7 , Windows 8.1 , Windows 10
Frame Buffer Memory 6GB
Bus Interface PCI Express 3.0
Max Resolution 7680 x 4320
Output HDMI x 1 , DisplayPort x 3

GeForce RTX3080
OS System Supported Windows 7 , Windows 10
Frame Buffer Memory 10GB
Bus Interface PCI Express 4.0
Max Resolution 7680 x 4320
Output HDMI x 2 , DisplayPort x 3

Quadro RTX4000
OS System Supported Windows 7 , Windows 8.1 , Windows 10
Frame Buffer Memory 8GB
Bus Interface PCI Express 3.0
Max Resolution 7680 x 4320
Output USB Type-C x 1 , HDMI x 1 , DisplayPort x 3

Radeon RX5700XT
OS System Supported Windows 7-64-bit , Windows 10-64-bit
Frame Buffer Memory 8GB
Bus Interface PCI Express 4.0
Max Resolution 7680 x 4320
Output HDMI x 1 , DisplayPort x 3

Quadro P2200
OS System Supported Windows 7 , Windows 8.1 , Windows 10
Frame Buffer Memory 5GB
Bus Interface PCI Express 3.0
Max Resolution 5120 x 2880
Output DisplayPort x 4
